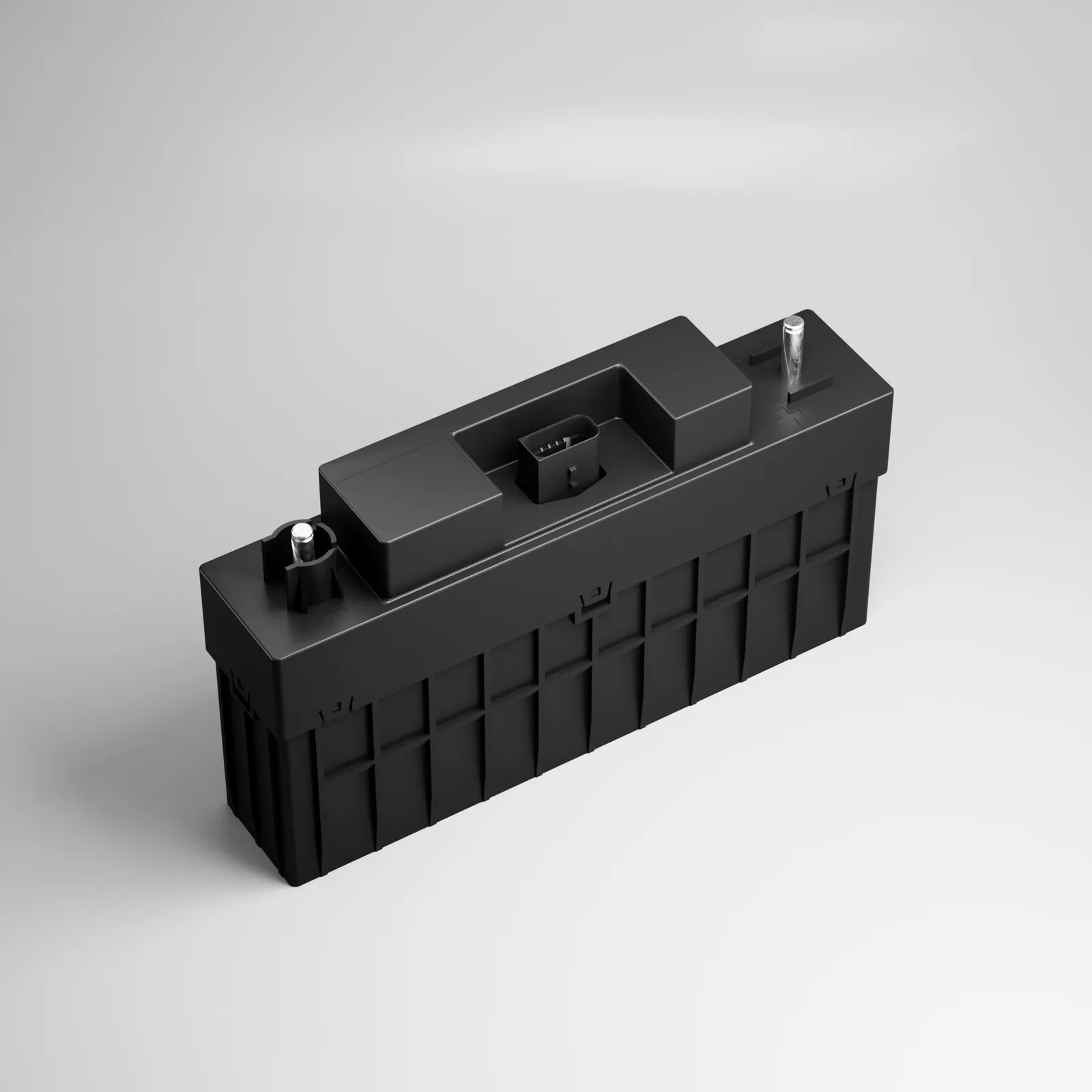

12V Supercapacitor Module
12V supercapacitor module can serve as backup power supply for vehicle safety-critical loads such as steer-by-wire and brake-by-wire systems, provide transient voltage support to the low-voltage electrical network, or deliver high-power energy for the cold start of internal combustion engine vehicles.
-
Operation Across Full Temperature Range
-
Extended Service Life
-
Field-Proven Safety Performance
Product Highlights
Operation Across Full Temperature Range
12V Supercapacitor Module incorporates a high-performance supercapacitor. The module integrates a high-performance supercapacitor, ensuring full functionality across extreme temperatures from -40℃ to 65℃.
Extended Service Life
Ultra long lifespan design, Cycle Life ≥ 500,000 cycles. It can ensure customer's product life, reduce annual usage costs, and have significant total life cycle cost advantage
Field-Proven Safety Performance
The module eliminates thermal runaway risks, allowing for safe packaging within the passenger compartment, also have function safety and cybersecurity functions in software.
Technical Specification
Rated System Voltage
14.2±0.15 V
System Operating Voltage Range
9～16V
Mudule Capacity
120F
System Grouping
5S1P
Operating Temperature
-40℃～85℃
Storage Temperature
-40℃～85℃
Mass
≈1.5 kg
Size
280mm*60mm*130mm
Connecter
TE 1801569
IP Level
IP 67*
