800kV Gas-Insulated Switchgear

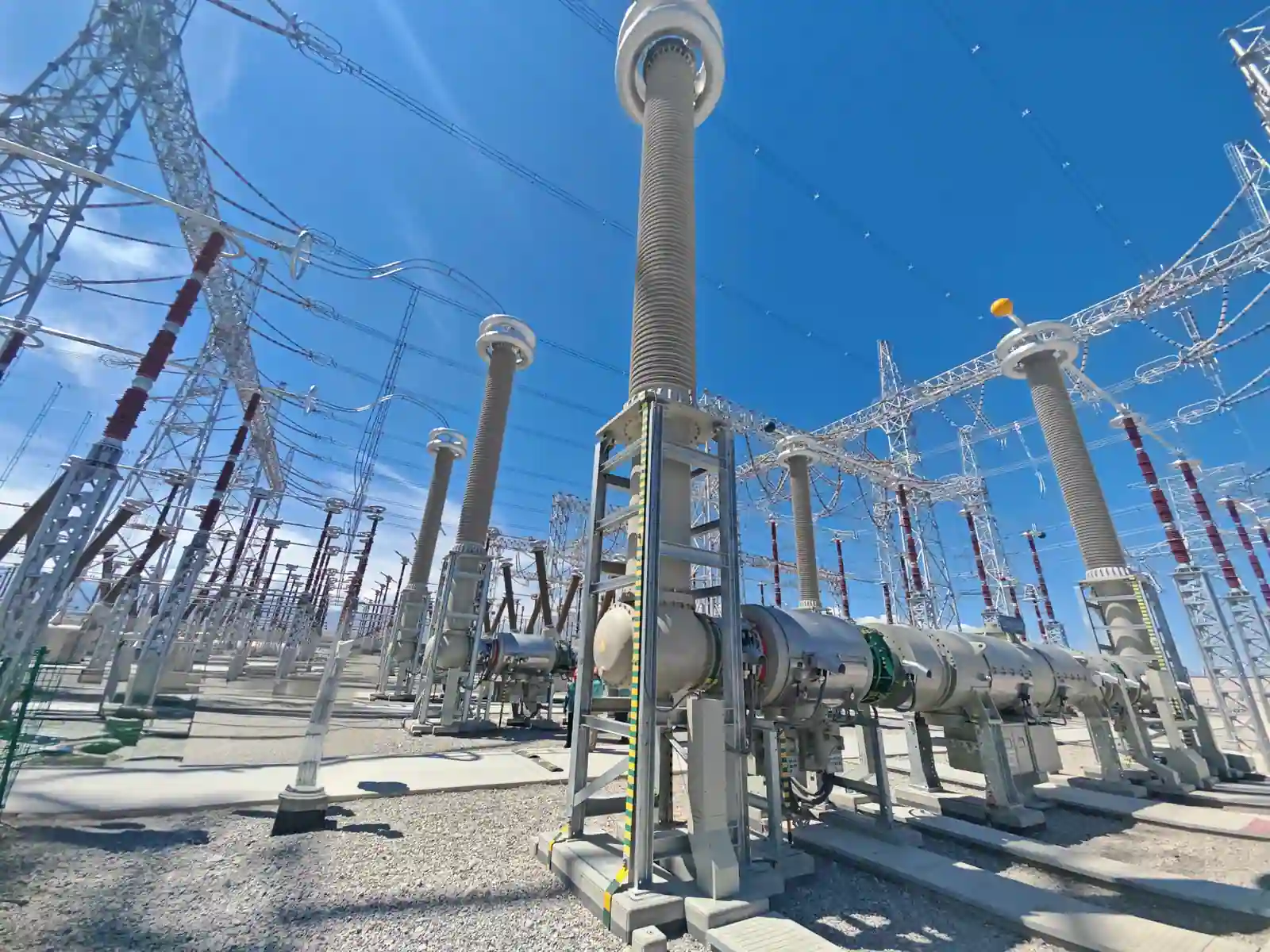

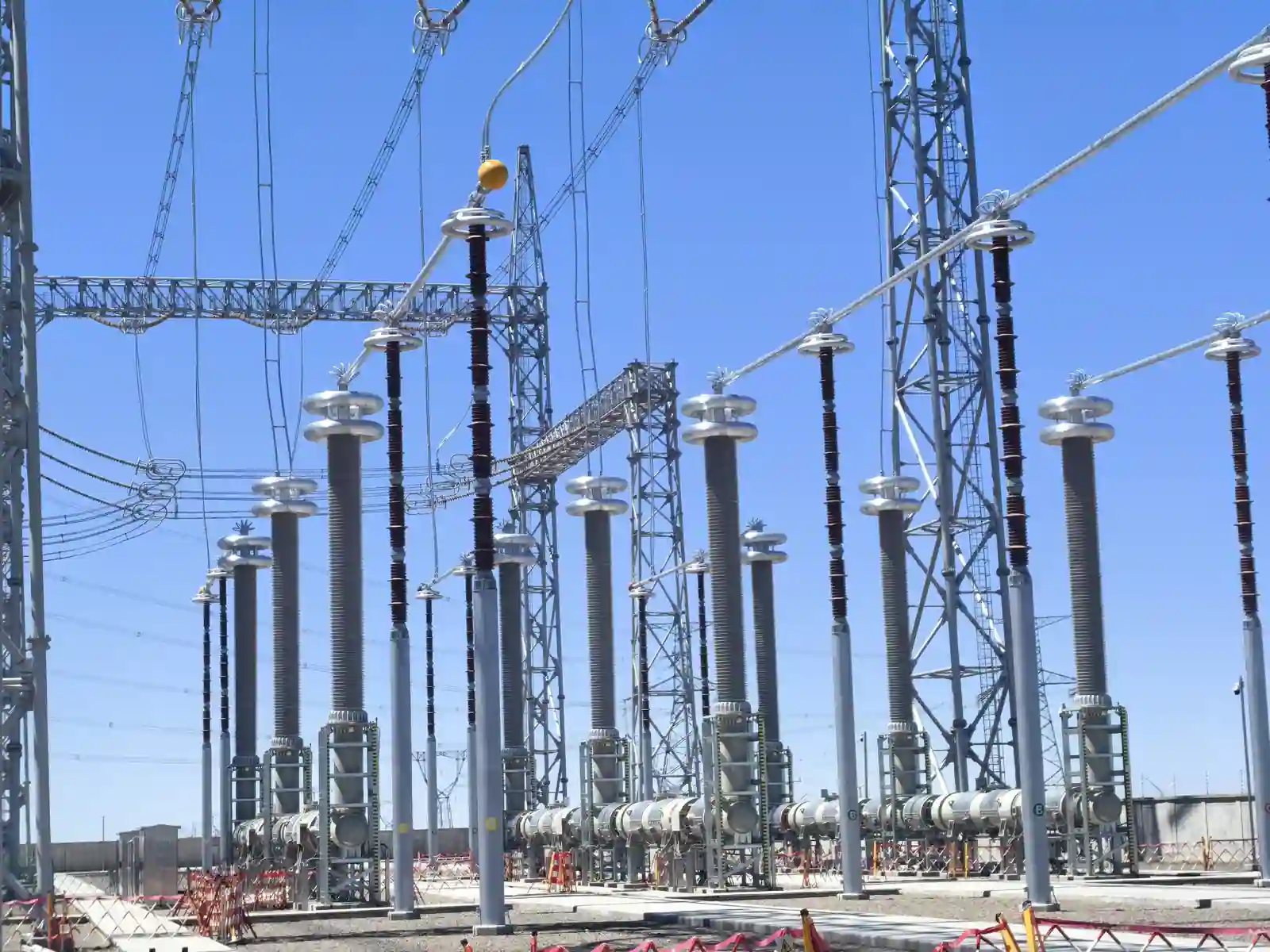

The ZF28-800 GIS is a complete set of 750kV high-voltage three-phase AC switchgear. The whole equipment adopts a fully enclosed, modular aluminium alloy structure, which can be flexibly combined into different main wiring methods according to user needs. It has strong interchangeability and is easy to expand.
-
Engineered for Peak Performance
-
Built for Operator Convenience
-
Proven Across Demanding Conditions
Product Highlights
Engineered for Peak Performance
It has passed insulation parameter tests exceeding the standard requirements. The absence of a horizontal insulator beneath the moving parts reduces the risk of insulation faults such as the accumulation of metal particles. The design of the self-energy plus compressed-air hybrid arc extinguishing chamber requires low operating energy, reduces driving impact, and enhances both insulation and mechanical reliability.
Built for Operator Convenience
All operating mechanisms are arranged in a low position to improve the convenience of on-site operation, maintenance, and repair.
Proven Across Demanding Conditions
Through targeted design and extreme working condition testing, it can operate stably and meet the requirements of complex outdoor scenes in environments with strong sandstorms and large temperature differences.
Technical Specification
Rated Voltage
800 kV
Rated Current
up to 6300 A
Rated Short-Duration Power-Frequency Withstand Voltage(1 min,Effective Value) - Phase to Phase,Phase to Ground
960 kV
Rated Short-Duration Power-Frequency Withstand Voltage(1 min,Effective Value) - Across Isolating Distance
960+462 kV
Rated Lightning Impulse Withstand Voltage(Peak Value) - Phase to Phase,Phase to Ground
2100 kV
Rated Lightning Impulse Withstand Voltage(Peak Value) - Across Isolating Distance
2100+650 kV
Rated Short-Time Withstand Current
up to 63 kA
Rated Duration of Short-Circuit
3 s
Rated Peak Withstand Current
up to 171 kA
