The integrated EV charger collaborates with our home energy storage units to realize smart green power, timed charging and multiple advanced functions. It maximizes usage of photovoltaic generation, prevents solar curtailment and improves end-user financial benefits, with simple DIY-capable installation.
-
Safety Engineered at Every Layer
-
Smart Charging Features
-
Designed for Faster Installation
Product Highlights
Safety Engineered at Every Layer
· Support for A+6 leakage protection · Fast protection with AC 30mA, DC 6mA, and 30ms response time · Anti-theft electric protection with a security lock feature
Smart Charging Features
· Support 100%sustainable energy, PV charging with the PV system · Appointment scheduling for low electricity rate periods · Automatic identification of countries, type of plugs, voltage and current corresponding to these plugs
Designed for Faster Installation
· Easy to set up your charging session with LCD display screen · Place on the car or hang on the wall · Support remote firmware upgrade for convenient upgrade maintenance

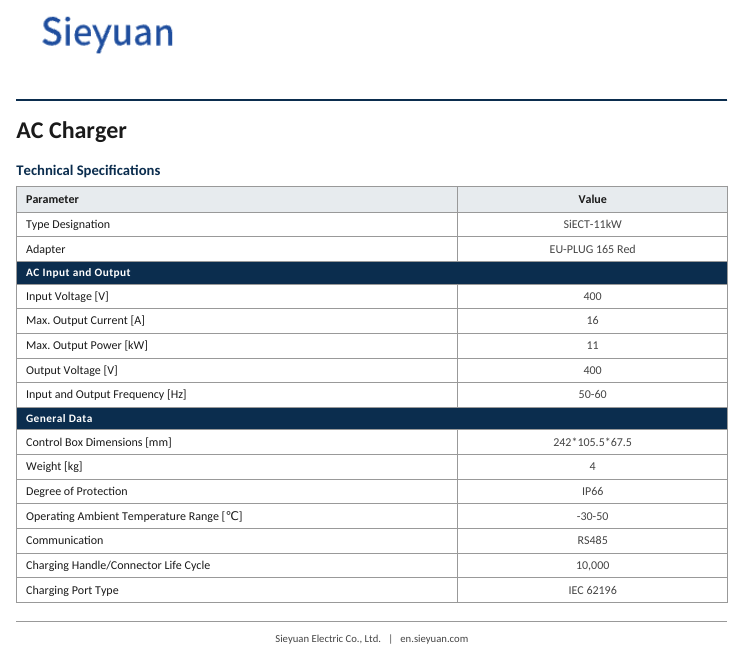

Technical Specification
Download
Type Designation
SiECT-11kW
Input Voltage [V]
400
Max. Output Current [A]
16
Max. Output Power [kW]
11
Output Voltage [V]
400
Weight [kg]
4
Degree of Protection
IP66
Operating Ambient Temperature Range [℃]
-30-50
Charging Handle/Connector Life Cycle
10,000
Charging Port Type
IEC 62196
