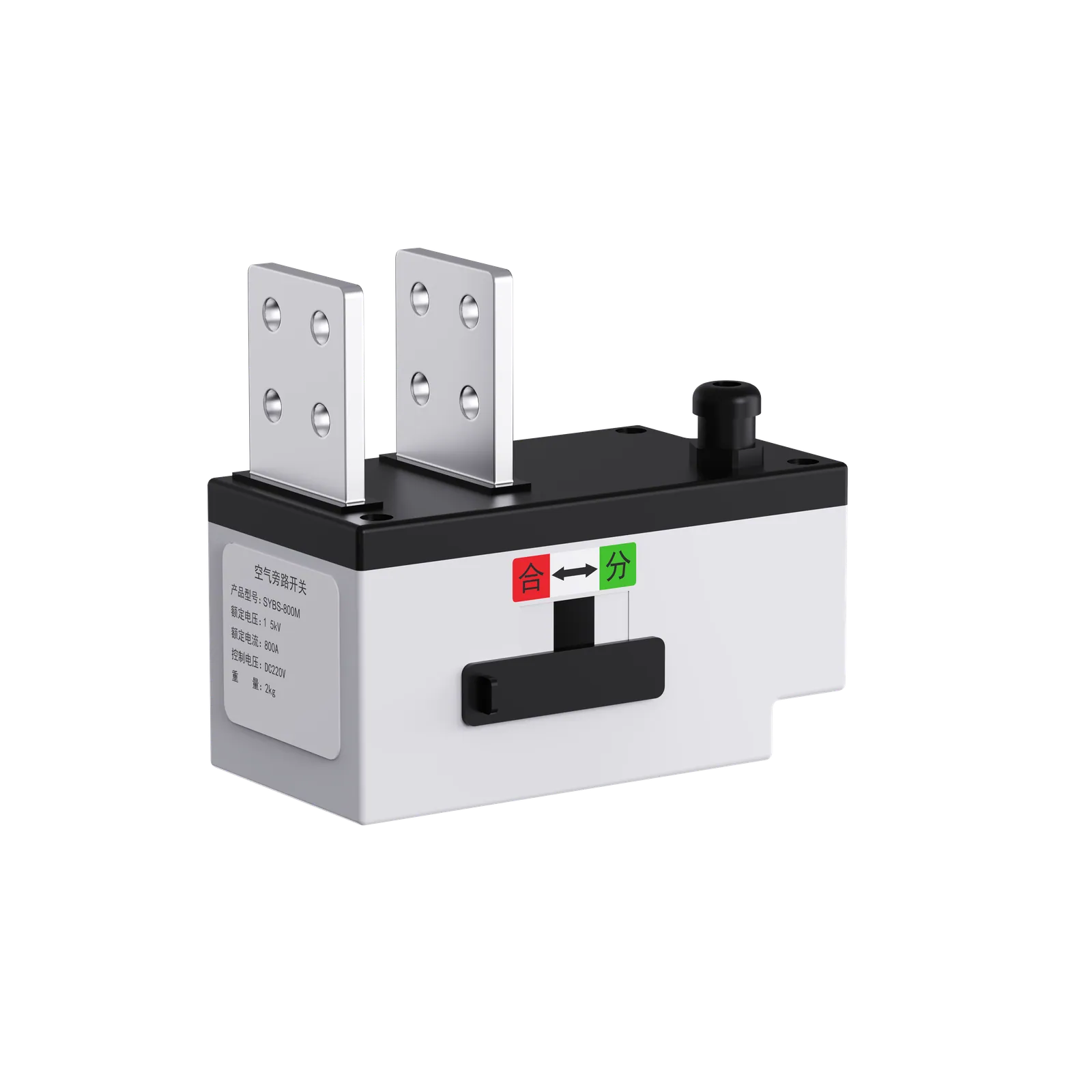

Air Insulated Type Bypass Switch
SYBS series air insulated type bypass switches are applied to sub-modules of SVG and high-voltage inverter power units and adopt redundant design. When the IGBT of any sub-module fails, the bypass switch can be quickly put into operation to bypass the faulty sub-module and ensure stable operation of the complete equipment.
-
Engineered for Long-Term Reliability
-
Long-Term Steady Bypass Support
Product Highlights
Engineered for Long-Term Reliability
Features a physical isolation point and self-latching mechanism; continuous power supply is not required.
Long-Term Steady Bypass Support
Low conduction loss, minor temperature rise, supporting prolonged bypass operation.
Technical Specification
Rated Operating Voltage Ue
AC 1500V
Rated Operating Current Ie
500A, 800A
1min Power Frequency Withstand Voltage Ud
5kV
Mechanical Endurance
2000
Closing Time (Including Bounce)
≤15ms
Feedback Time of Closing State (Including Bounce)
≤30ms
