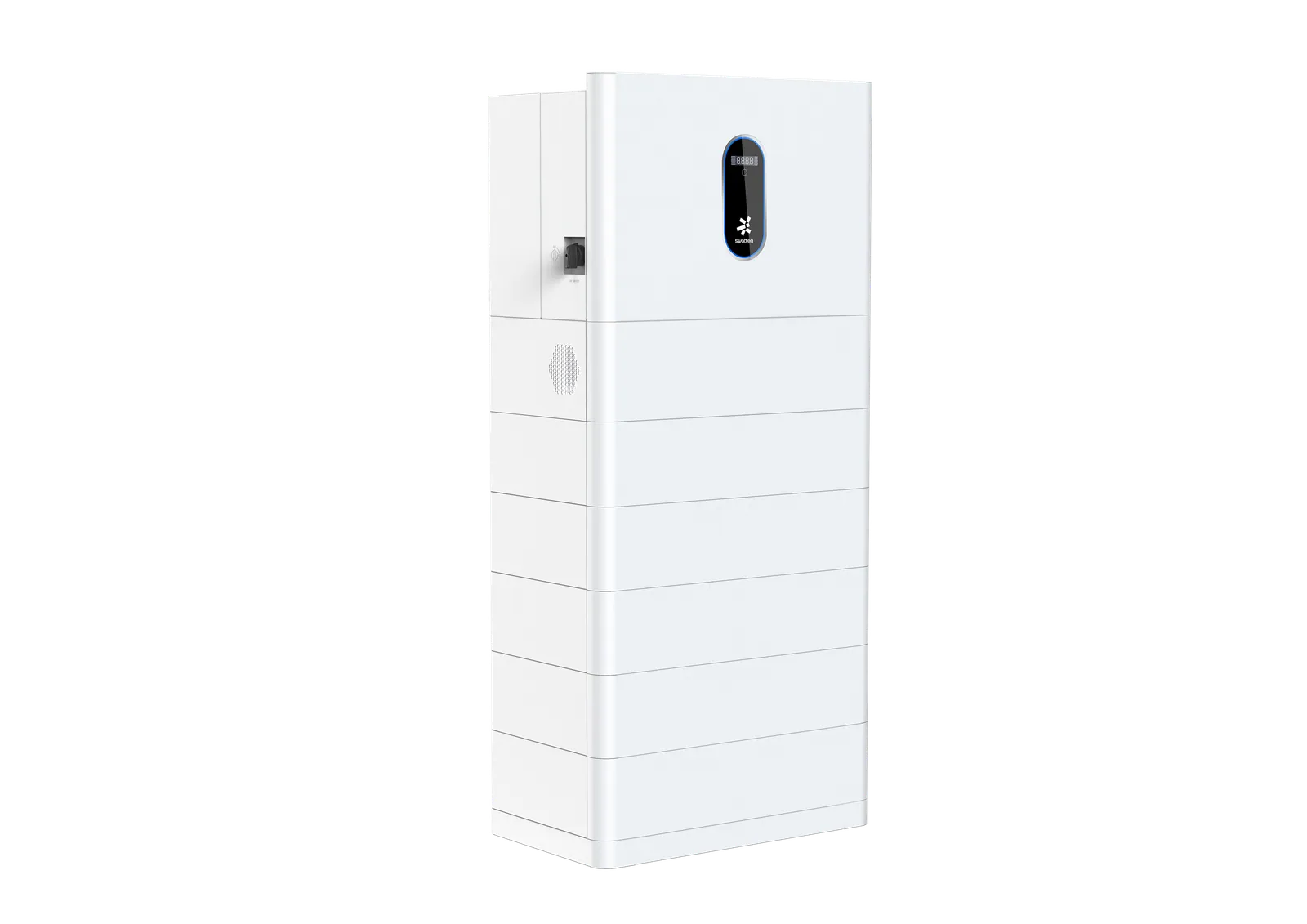

All-in-One Energy Storage System
Single phase/Three phase All-in-one PV energy storage unit, well-suited for residential applications, perfectly integrates photovoltaic power generation and energy storage,
-
All-in-One After-Sales Service
-
Saves 20% Space
-
20% Reduction in Installation Time
-
Integrated AC Charger, Plug & Play
Product Highlights
All-in-One After-Sales Service
10-year warranty. Replace new machines instead of repairing. No need to worry about after-sales between inverters and batteries of different brands.
Saves 20% Space
Integrated humanized design, removed redundant cables. Adds points to beauty and attractiveness.
20% Reduction in Installation Time
Stack installation with Plug & Play connection. Makes the installation process time-saving, cost-effective and worry-free.
Integrated AC Charger, Plug & Play
Charges electric vehicles with clean energy, effectively reducing charging costs.

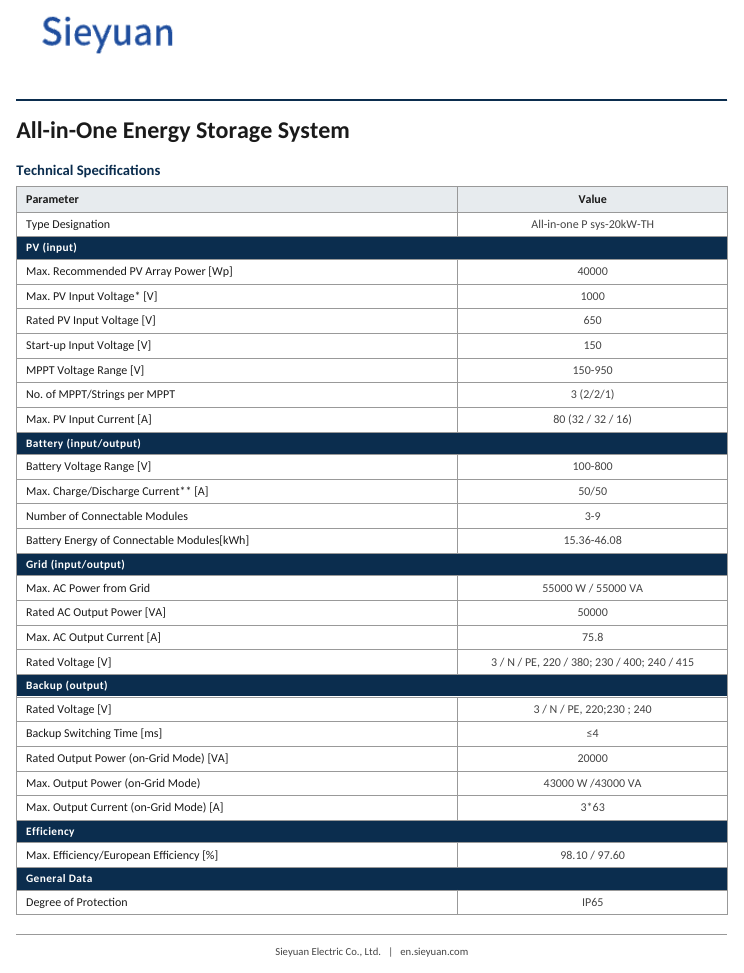

Technical Specification
Download
Type Designation
All-in-one P sys-20kW-TH
Max. Recommended PV Array Power [Wp]
40000
Rated PV Input Voltage [V]
650
Battery Voltage Range [V]
100-800
Number of Connectable Modules
3-9
Battery Energy of Connectable Modules[kWh]
15.36-46.08
Rated AC Output Power [VA]
50000
Rated Voltage [V]
3 / N / PE, 220 / 380; 230 / 400; 240 / 415
Max. Efficiency/European Efficiency [%]
98.10 / 97.60
Degree of Protection
IP65
