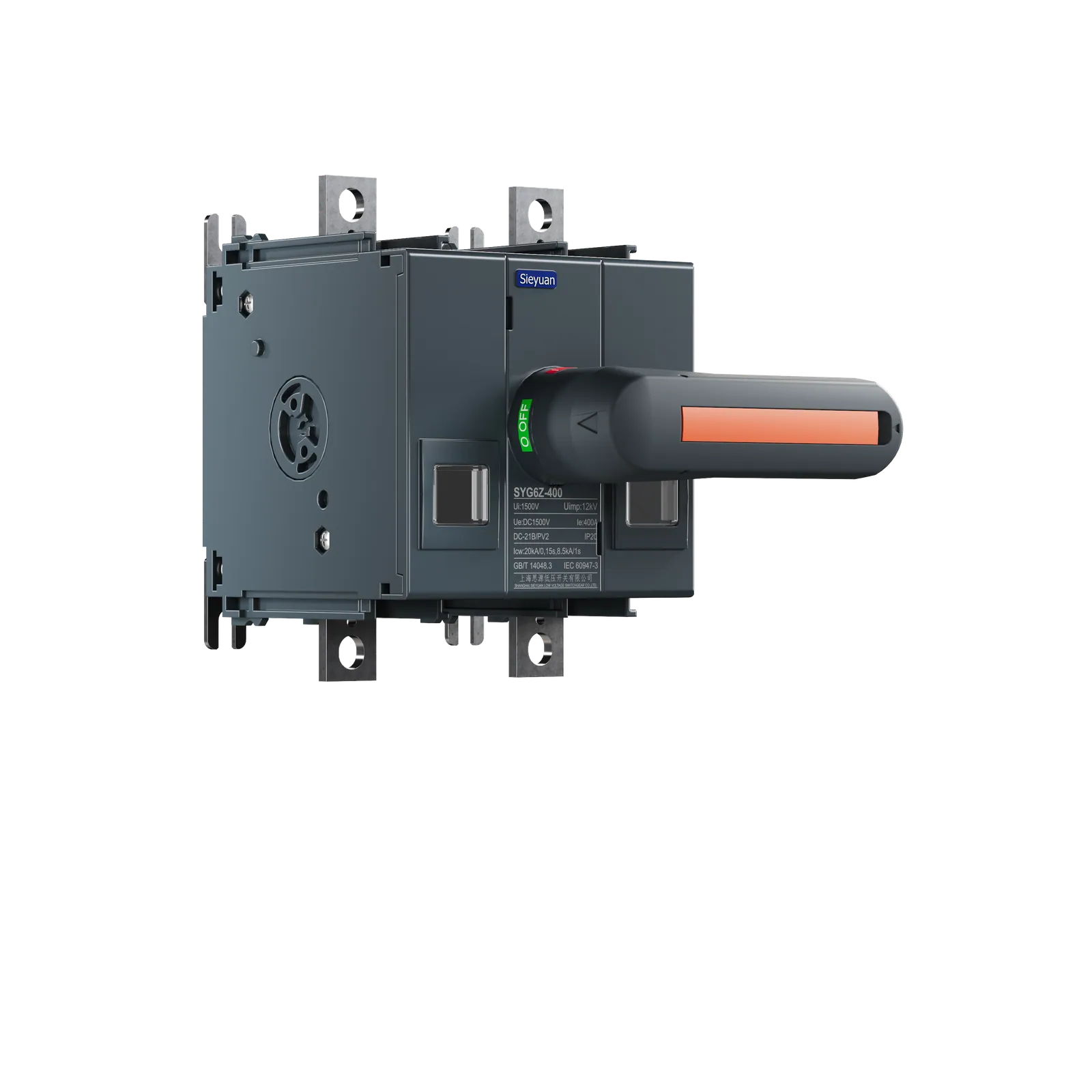

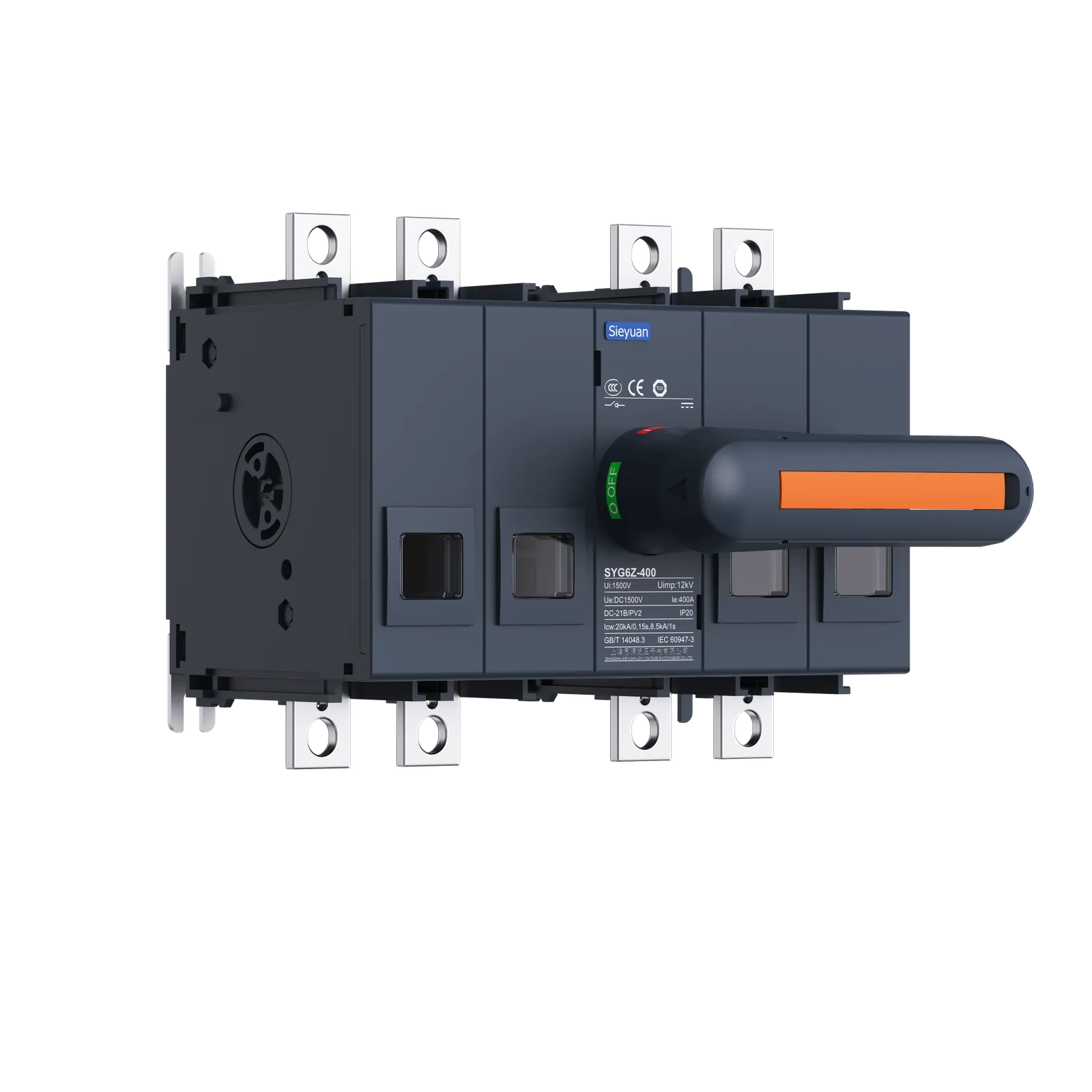

DC Rotary Switch-Disconnector
SYG6Z series DC rotary switch-disconnectors are suitable for DC systems with rated working voltage DC 1500 V and below and rated working current 1600 A and below, with the functions of main circuit connection, disconnection and isolation. Typical application scenarios include energy storage, photovoltaics, data centers and DC distribution.
-
Engineered for Long-Term Reliability
-
Protection Rated for the Field
-
Globally Certified
-
Configured Around Your Application
Product Highlights
Engineered for Long-Term Reliability
High short-circuit withstand capability, long mechanical & electrical service life for stable operation
Protection Rated for the Field
External handle with IP65 rating, meeting high protection requirements
Globally Certified
Uniform overall dimensions for CCC/CE/UL/AS versions, eliminating secondary design work
Configured Around Your Application
Modular design with multiple operating modes, adapting to various cabinet structures and operation spaces.
Technical Specification
Rated Operating Voltage Ue
DC1500V
Rated Operating Current Ie(IEC)
160A, 200A, 225A, 250A, 275A, 320A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A
Rated Operating Current Ie(UL)
200A, 250A, 275A, 325A, 400A, 500A, 600A, 800A, 1000A, 1200A
Rated Impulse Withstand Voltage Uimp
15kV
Rated Short-Time Withstand Current Icw
63kA/0.1s
Rated Short-Circuit Making Capacity Icm
20kA
Mechanical Endurance
10000
