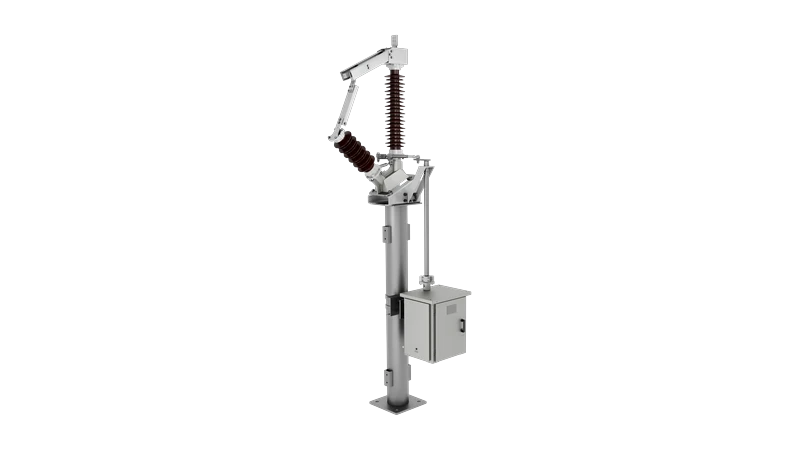

GW13 Double-Column Centre Break V-Type Disconnector

GW13 product is a V-type rotary outdoor high-voltage disconnector dedicated for neutral points. Rated voltage covers 40.5-126kV.

Conductive Material & Current-Carrying Performance
Novel Contact Structure
Fixed Connections
Maintenance-Free Transmission System

Get in Touch

Product Highlights Technical Specification Industries We Serve

Product Highlights

Conductive Material & Current-Carrying Performance

Conductive arms employ slot-shaped aluminum alloy profiles (high conductivity, high strength) with anodized surface treatment. Combines corrosion resistance, high mechanical strength, and excellent heat dissipation.

Novel Contact Structure

Self-energized contact fingers utilize chrome bronze alloy’s inherent elasticity to clamp the contact blade. Beyond meeting standard current-carrying requirements, it satisfies short-term thermal load and electromagnetic force under short-circuit faults while offering superior mechanical wear resistance.

Fixed Connections

Monolithic cast bearing housing with linkage mechanism design. Internal combined-support bearing structure enables lightweight operation.

Maintenance-Free Transmission System

Transmission system designed per maintenance-free requirements. Self-lubricating bushings paired with stainless steel pins prevent binding issues in rotating components.
