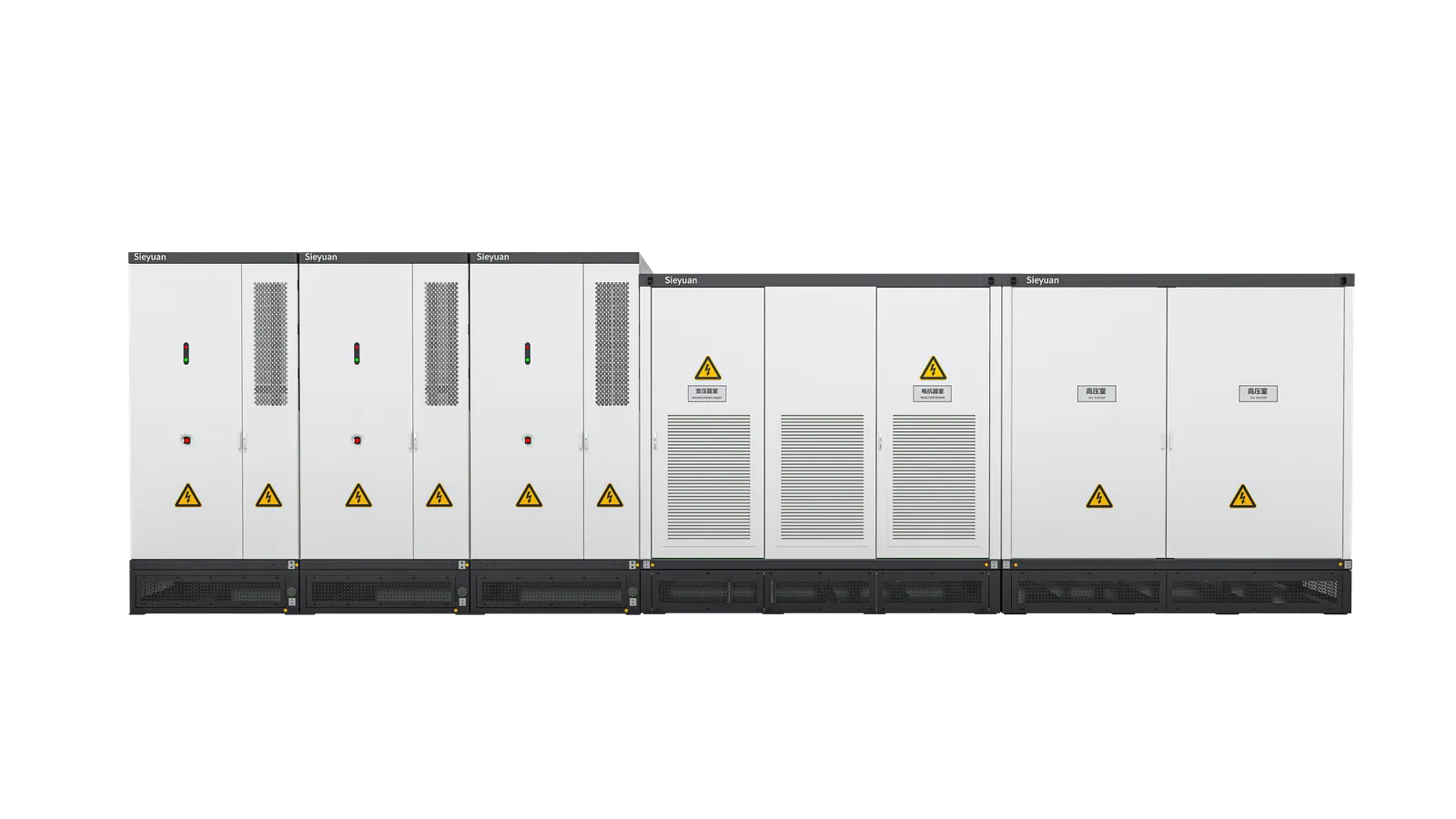

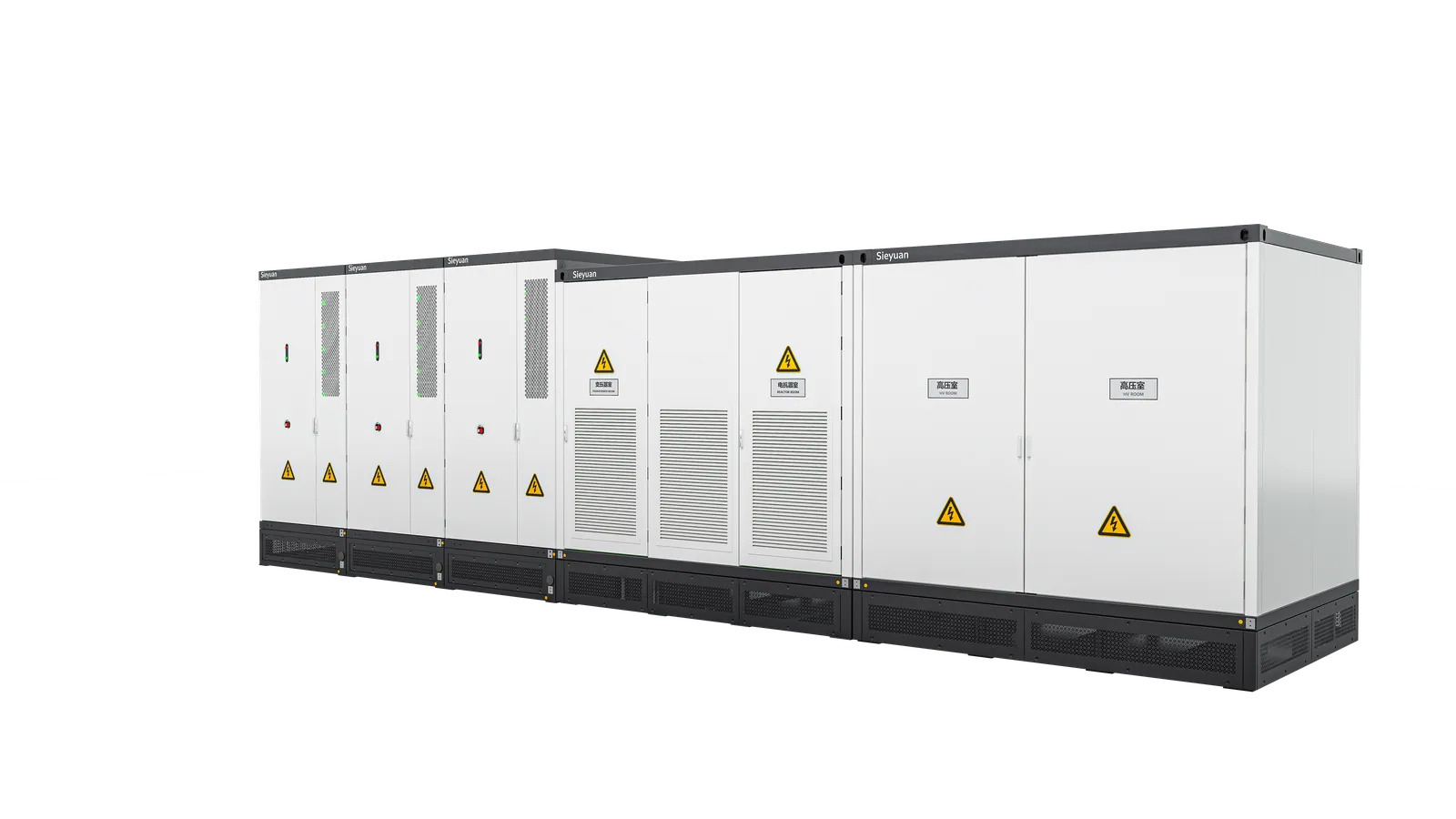

Energy-type High-quality Power Supply
Leveraging advanced and mature grid-forming technology, we have developed high-quality power supply solutions that deliver comprehensive mitigation of power quality issues such as voltage sags and short interruptions. Supporting connection voltage levels ranging from 0.4 kV to 35 kV, the solutions enable centralized governance for an entire substation or a complete bus section.
-
Centralized Voltage Sag Mitigation
-
Zero-Latency Frequency and Voltage Stabilization
-
Extended Functional Capability
-
Full-Lifecycle One-Stop Service System
Product Highlights
Centralized Voltage Sag Mitigation
Centralized mitigation of voltage sags for 0.4 kV – 35 kV systems. It can be flexibly deployed at positions such as the medium-voltage incoming side, outgoing side, transformer high-voltage side and low-voltage side. It realizes centralized voltage sag mitigation for the whole substation or an entire bus section. Equipped with fault direction identification capability, it can effectively avoid false operations caused by load-side faults.
Zero-Latency Frequency and Voltage Stabilization
Adopting industry-leading grid-forming voltage source technology, the system delivers zero-latency natural response and maintains stable voltage and frequency during transient conditions.
Extended Functional Capability
While realizing voltage sag mitigation, the system integrates multiple functions including peak-valley arbitrage, power factor improvement, unbalance mitigation, harmonic mitigation, emergency power supply, demand response and demand management.
Full-Lifecycle One-Stop Service System
We provide full-lifecycle one-stop services including site survey, solution planning, simulation verification, customized design, as well as dual operation and maintenance support covering cloud platform and user terminal.
Technical Specification
Total Transfer Time
0~50ms
Compensation Capacity
0~130%Un
Support Duration
1~4h
Rated Input Voltage
0.4kV~35kV
Response Time
0ms Continuous operation under grid-forming mode
Protection Class
IP55
