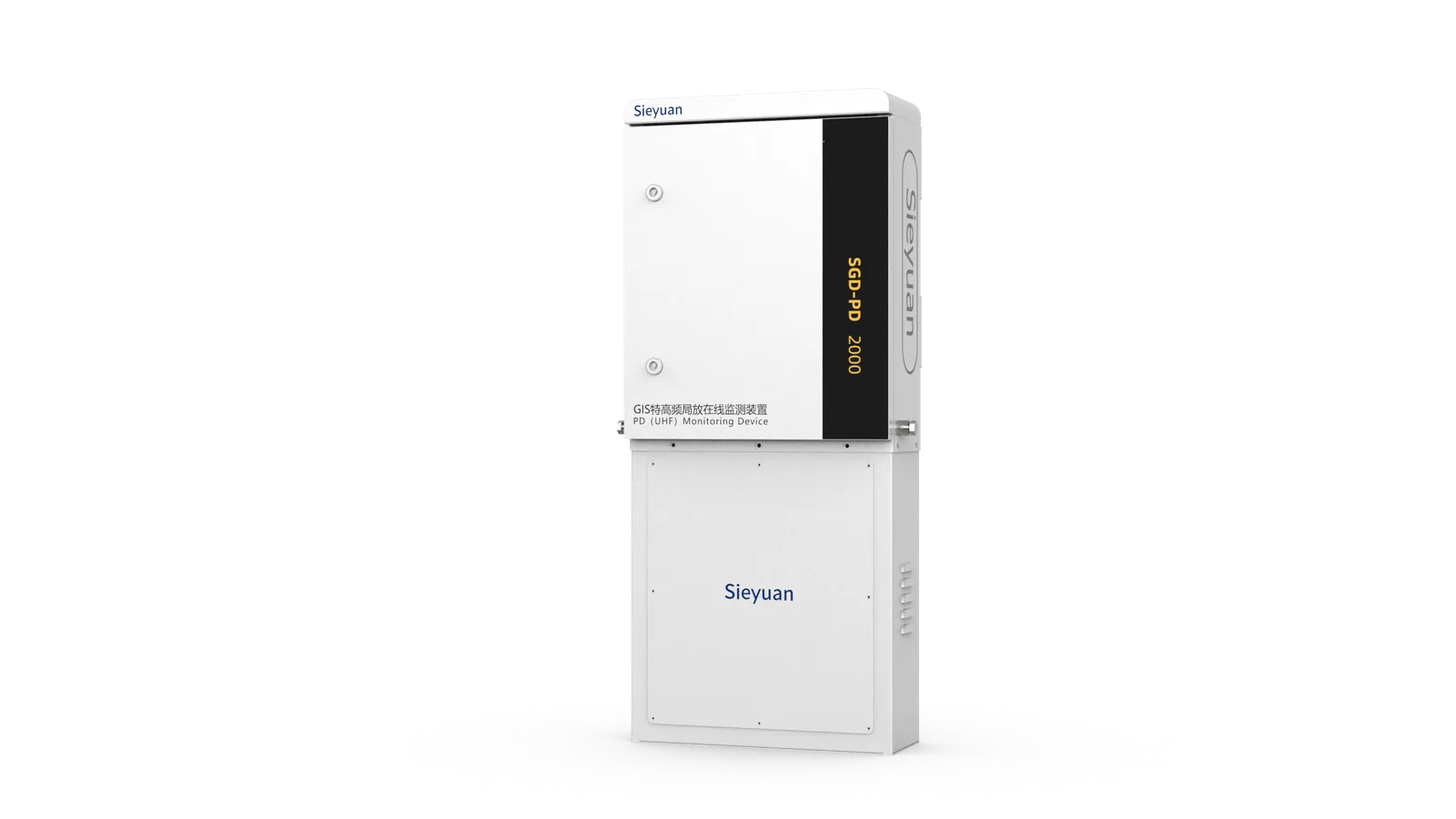

SGD-PD-2000 Online PD Monitoring Device
The SGD-PD-2000 is designed for insulation condition monitoring of GIS equipment. It uses highly sensitive sensors and high-speed sampling technology to accurately capture partial discharge signals and rapidly locate defects, enabling early hazard identification, timely warnings, and prompt corrective action.
-
High Sensitivity
-
Wide Dynamic Range
-
Accurate Positioning
-
Intelligent Analysis
Product Highlights
High Sensitivity
Self-developed high-sensitivity sensors offer an equivalent height of up to 15 mm, delivering industry-leading precision in capturing weak partial discharge signals.
Wide Dynamic Range
A dynamic range of ≥70 dB covers full-scale monitoring needs, from weak pulses to severe discharges.
Accurate Positioning
With 250 MB/s high-speed sampling and a positioning error of ≤0.3 m, the system accurately locates faults and reconstructs discharge signatures.
Intelligent Analysis
With a partial discharge alarm recognition accuracy of over 99%, the system effectively reduces false alarms and supports accurate GIS insulation condition assessment.
Technical Specification
Power Supply Frequency
50 Hz (±5%)
AC Operating Voltage
AC 220 V (±15%)
Equivalent Height
15 mm
Sensor Protection Rating (External)
IP66
Ambient Temperature
-40 °C to 70 °C
Ambient Relative Humidity
5%-95% RH (non-condensing and non-icing inside the system)
Altitude
≤ 4,000 m
Atmospheric Pressure
80 kPa-110 kPa
