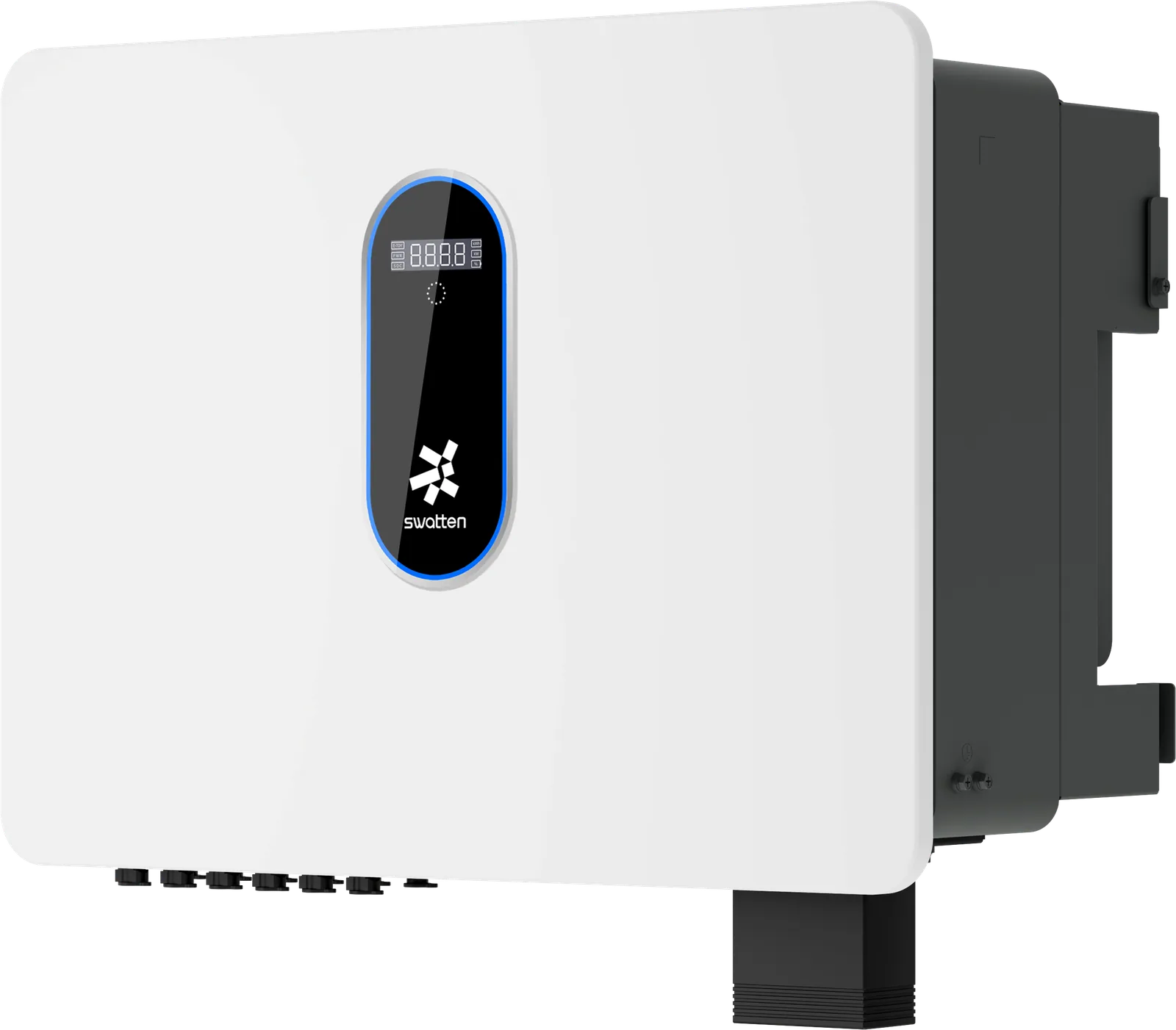

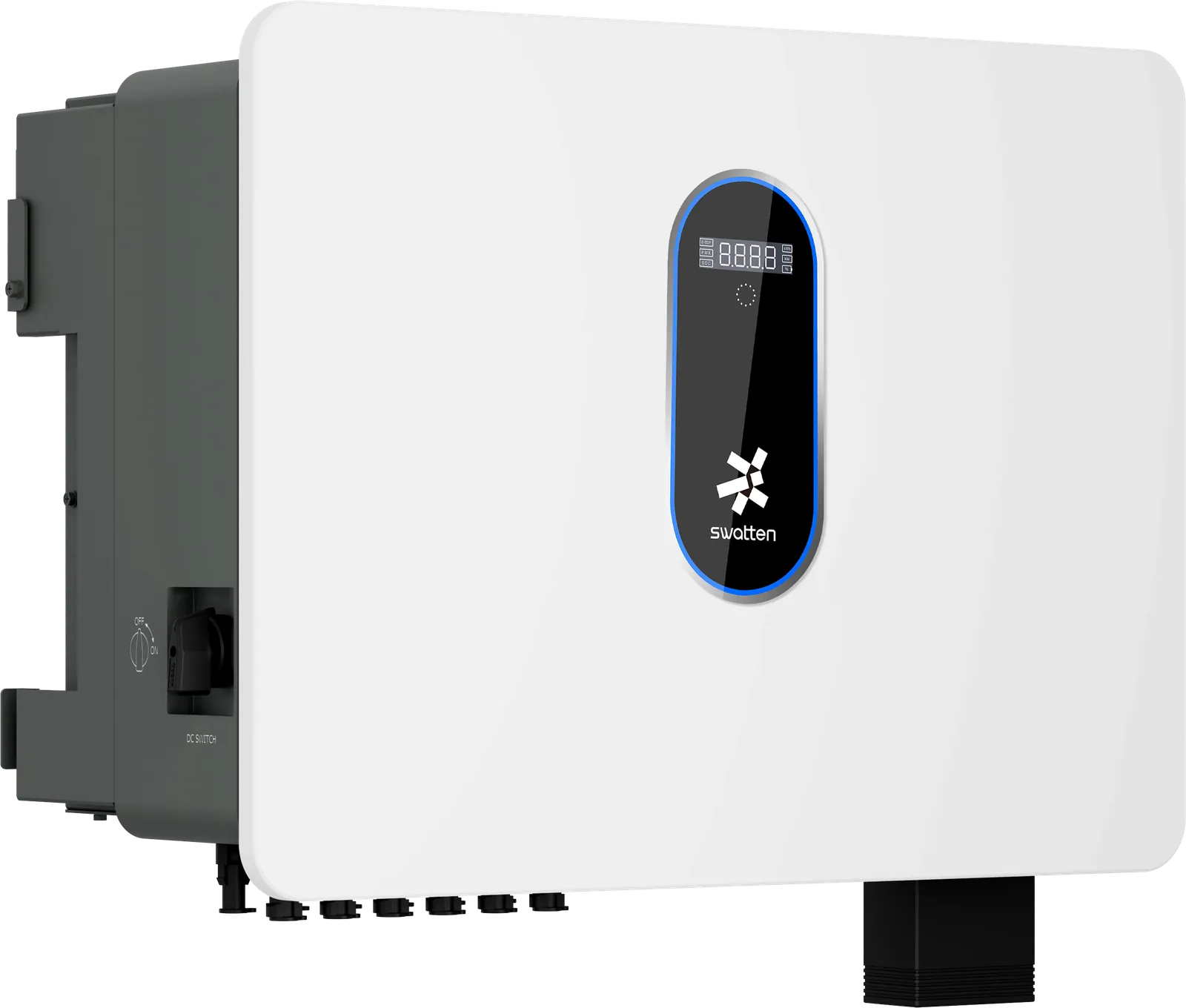

Residential & C&I Hybrid Inverter
It converts photovoltaic energy into AC power to supply loads, stores energy in batteries, and grid feed-in power generation. Equipped with smart energy management, it supports automatic seamless switching between grid-tied and off-grid modes.
-
Supports 30 Units in Parallel
-
More Flexible 6 PV Strings
-
More Intelligent 4ms
-
More Reliable 55kW
Product Highlights
Supports 30 Units in Parallel
Supports 30 units in parallel with Master-Slave control, delivering up to 1500kW.
More Flexible 6 PV Strings
Divides the solar panels into up to six zones, adapting to complex installation scenarios.
More Intelligent 4ms
Switching time with whole-home backup, delivering 100% EPS output power (off-grid mode).
More Reliable 55kW
Max. output power for backup load during On-Grid mode
Technical Specification
Type Designation
SiH-50kW-TH
Max. Recommended PV Array Power [Wp]
60000
Rated PV Input Voltage [V]
650
Battery Voltage Range [V]
100-800
Max. Charge/Discharge Power [W]
50000 / 50000
Rated AC Output Power [VA]
50000
Rated Voltage [V]
3 / N / PE, 220 / 380; 230 / 400; 240 / 415
Rated Output Power (on-Grid Mode) [VA]
50000
Max. Efficiency/European Efficiency [%]
98.20 / 97.90
Degree of Protection
IP66
