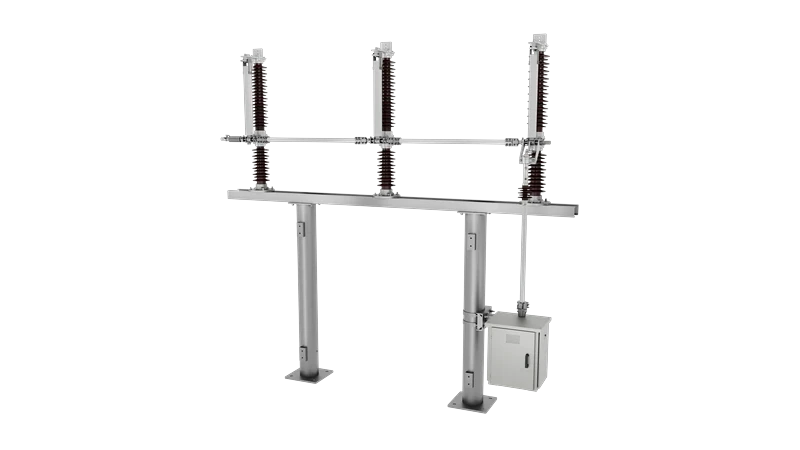

GW8 Single-Column Vertical Break Disconnector
GW8 product is a single-column vertical-opening type outdoor high-voltage switch dedicated for neutral points or reactive compensation circuits. Rated voltage covers 40.5-126kV.
-
Premium Conductive Material
-
Novel Contact Structure
-
Fixed Connections
Product Highlights
Premium Conductive Material
Current-carrying arms employ rectangular aluminum alloy profiles featuring high strength, lightweight construction, enhanced heat dissipation area, and superior corrosion resistance.
Novel Contact Structure
Self-energized contact fingers utilize chrome bronze alloy’s inherent elasticity to clamp the contact blade. Beyond standard current-carrying requirements, withstands short-term thermal load and electromagnetic force during short-circuit faults while exhibiting excellent mechanical wear resistance.
Fixed Connections
Conductive path employs permanent connections (excluding moving/stator contact engagement) to achieve maintenance-free functionality.
Technical Specification
Rated Voltage
40.5kV, 72.5kV, 126kV
Rated Frequency
50/60Hz
Rated Current
Up to 1600A
Rated Short-Time Withstand Current
Up to 40kA
Rated Peak Withstand Current
Up to 100kA
Ambient Temperature
-50℃~ +55℃
Ice Coating
Up to 20mm
Seismic Intensity
Up to 1.0g
