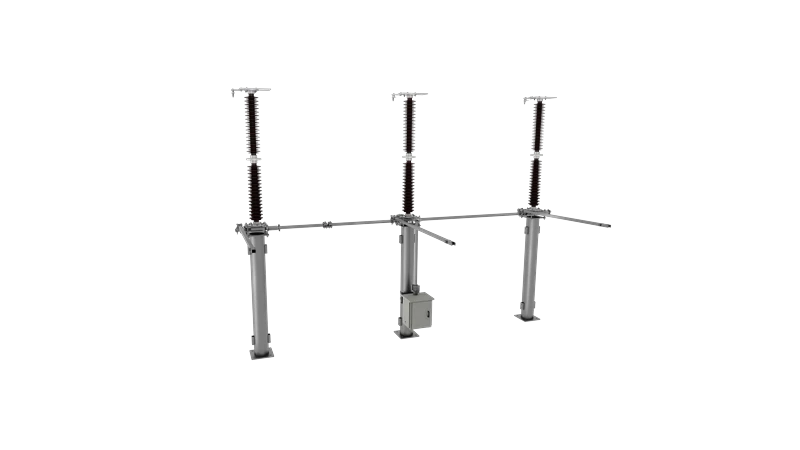

JW10 Single-Column Vertical Break Earthing Switch
JW10 product is a single-column vertical-opening outdoor high-voltage earthing switch. Rated voltage covers 40.5-800kV.
-
High-Strength Aluminum Conductor
-
Simple, Reliable Contact Structure
-
High Short-Time Withstand Current
Product Highlights
High-Strength Aluminum Conductor
The conductive arm is made of high-strength aluminum alloy profiles. It has excellent conductivity, high structural strength, light weight, and strong corrosion resistance.
Simple, Reliable Contact Structure
The grounding switch adopts a one-step operation structure, with the contacts being of the snap-in type. The structure is simple and maintenance is convenient. This design effectively utilizes the electrodynamic force to clamp the contacts and keep the grounding switch in the closed position, thus having excellent ability to withstand short-circuit current.
High Short-Time Withstand Current
The 63kA version grounding switch product is of two-step operation type. During the closing process, it rotates upward from the horizontal position to the static contact point, and then inserts into the contact point, demonstrating strong ability to withstand short-circuit current.
Technical Specification
Rated Voltage
40.5kV, 72.5kV, 126kV, 145kV, 170kV 252kV, 363kV, 420kV, 550kV, 800kV
Rated Frequency
50/60Hz
Rated Short-Time Withstand Current
Up to 63kA
Rated Peak Withstand Current
Up to 164kA
Ambient Temperature
-50℃~ +55℃
Ice Coating
Up to 20mm
Seismic Intensity
Up to 1.0g
