STATCOM

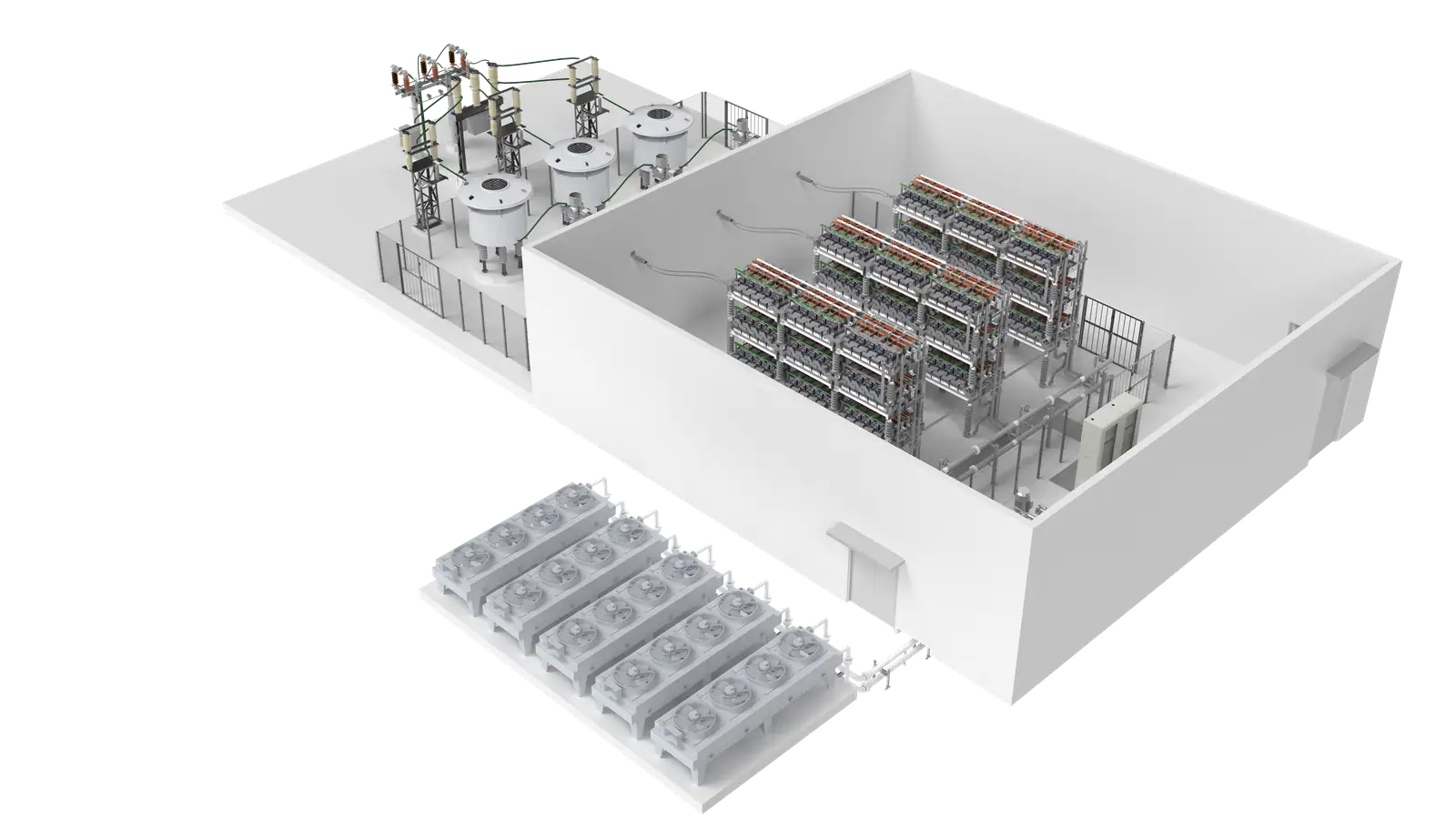

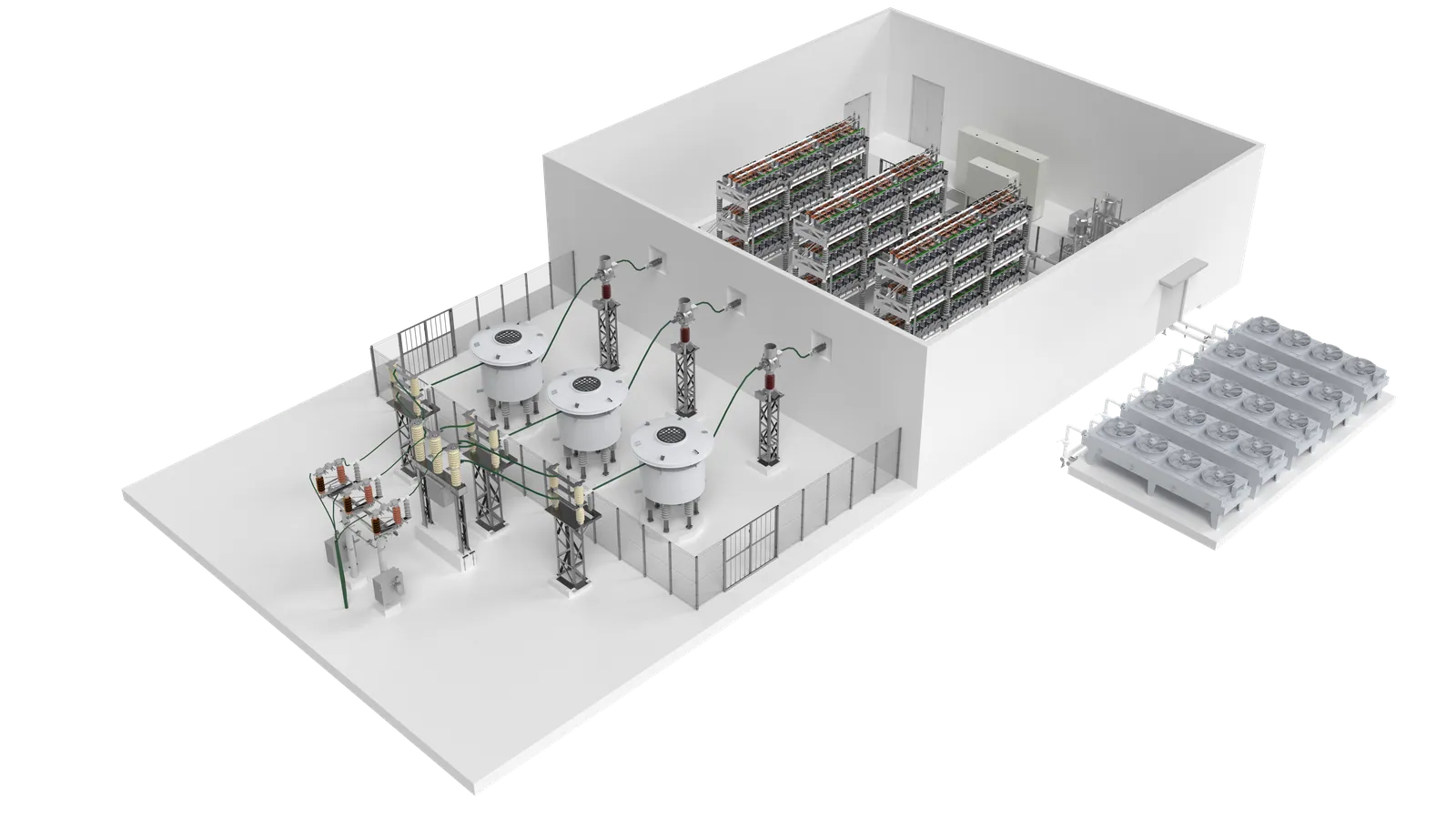

STATCOM is a dynamic reactive power compensator based on cascaded H-bridge topology, widely used in power grids, new energy generation and industrial sites.
-
Engineered for Peak Performance
-
Engineered for Long-Term Reliability
-
Grid Friendliness
-
Flexible Delivery
Product Highlights
Engineered for Peak Performance
Fast response time, excellent harmonic characteristics, and high compensation accuracy.
Engineered for Long-Term Reliability
Full-process verification covering product lifecycle simulation, development and manufacturing achieves an annual availability up to 99.7%.
Grid Friendliness
Adopting vector decoupling and voltage stabilization control with multi-condition simulation, it surpasses grid codes for wind and PV plants.
Flexible Delivery
Modular and standardized design shortens delivery cycles. Integrated assembly, transportation and intelligent commissioning cut on-site work time by 50%.
Technical Specification
1 - Rated Voltage(PCC)
66kV~750kV
2 - Rated Voltage(POC)
6kV~66kV
3 - Rated Capacity
Single Set: 0.5MVAr~400MVAr
4 - Rated Frequency
50Hz/60Hz
5 - Topology
MMC
6 - Connection Mode
Star connection/ Delta connection/ Single-phase
7 - Cooling Method
Water cooling
8 - Operation Modes
Constant device reactive power mode / Constant system reactive power mode / Constant voltage control mode / Constant current control mode / Constant power factor mode / Comprehensive voltage reactive power control mode
9 - Installation Method
Indoor/ Outdoor
10 - Operating Temperature
-45℃ ~ 50℃, configurable according to local climate conditions
11 - Altitude
5000m
