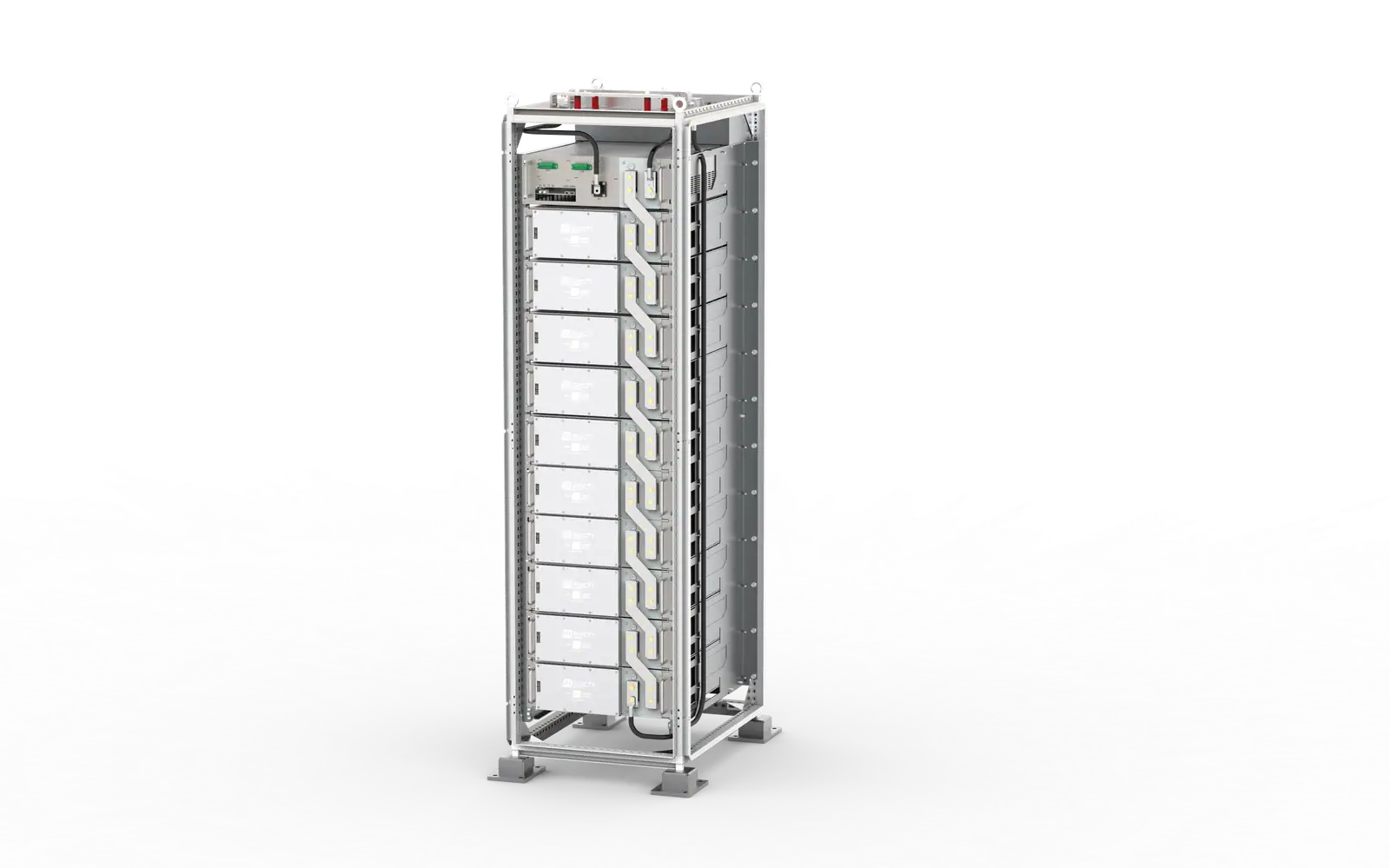

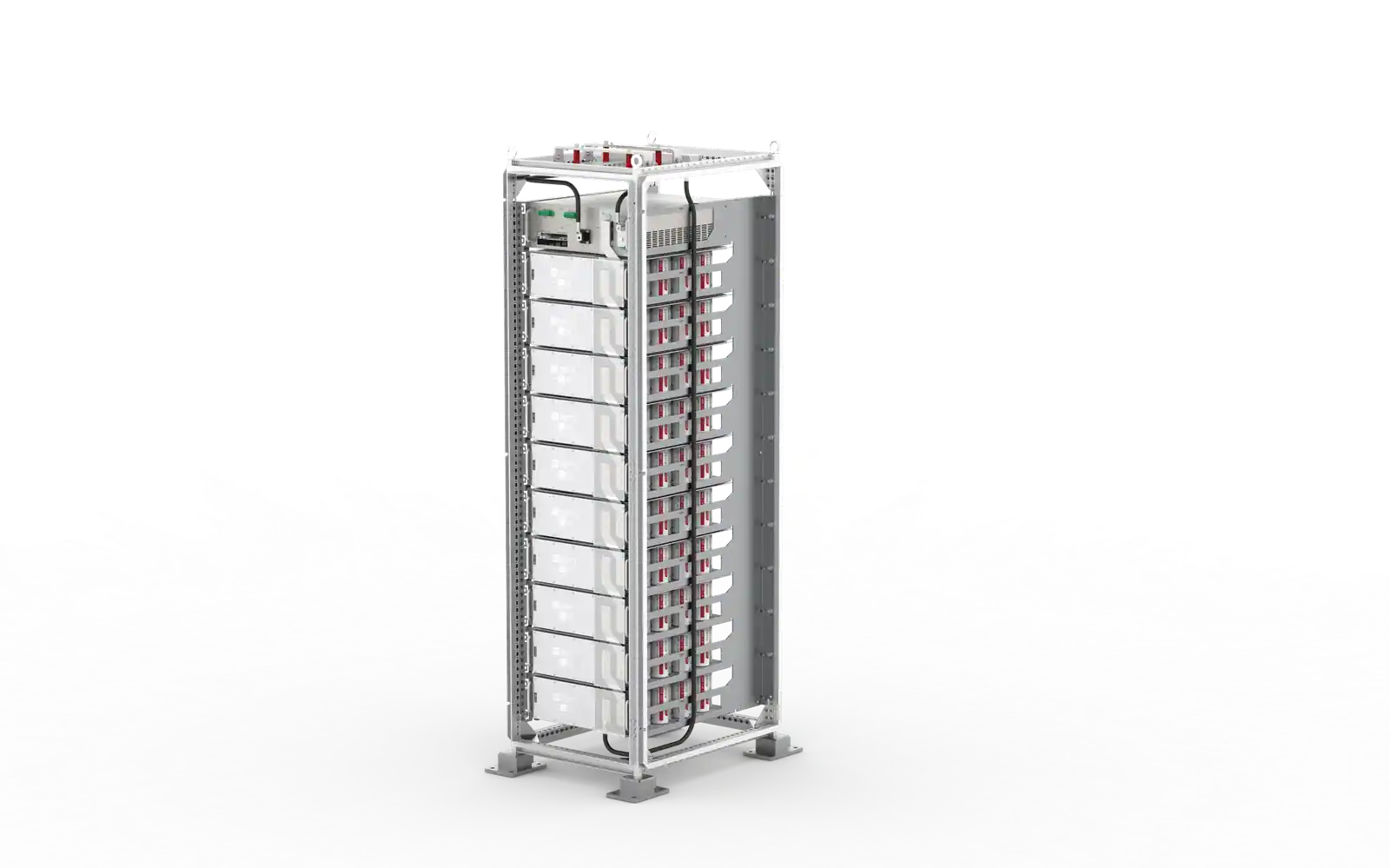

Supercapacitor Cabinet
Adopting an integrated design, the supercapacitor cabinet integrates supercapacitor modules, control system and HMI.It features high energy storage density, long service life and excellent safety and reliability.
-
High Energy Density
-
Low Attenuation & Long Lifespan
-
Low-Voltage System Built for Durability
-
Safe &Convenient O&M
Product Highlights
High Energy Density
Energy density increased by 50%. Integrated charge and discharge control saves floor space and civil engineering costs, facilitates on-site installation, and meets renovation demands in limited-space scenarios.
Low Attenuation & Long Lifespan
Adopting mature dry electrode technology, near 20 million cells have been fully verified in global automotive and power system projects. Superior consistency and long-term stability ensure prolonged system operation, with low attenuation in power output and backup duration.
Low-Voltage System Built for Durability
Referring to the design of primary and secondary systems in high-voltage substations, the cabinet adopts separated power and control circuit layout. Data acquisition and control modules are independently replaceable. All core components comply with EMC Level 3 and higher standards, featuring high operational reliability and strong anti-interference ability to support long-term uninterrupted system operation.
Safe &Convenient O&M
Equipped with high-resolution touchscreen HMI for intuitive operation status display. Built-in charge-discharge units and maintenance isolating switches support one-click commissioning and maintenance. Dual isolation is applied to electrical circuits, while software and hardware adopt interlocking protection to ensure operational safety.
Technical Specification
Rated Power (kW)
≤1000
Backup Duration (s)
Customizable
Operating Voltage Range (V)
≤1500
System Internal Resistance (mΩ)
≤ 21
Insulation Withstand Voltage
3000V AC 1min
Communication Interfaces
FE,RS485,CAN,Dry Contacts
Protection Functions
Over-temperature, Over-current, Short-circuit, Over-charge
Pre-Charging Time (min)
Customizable
Maintenance Discharge Time (min)
Customizable
N-Mode Flexible Operation
The device can maintain normal operation upon the shutdown of partial system branches.
Gas Detection
It supports multiple detection methods.
Ingress Protection
Customizable
