SEM-T Transformer Integrated Online Monitoring System
SEM-T transformer integrated online monitoring system brings together multi-dimensional transformer monitoring parameters. By establishing oil chromatographic comprehensive diagnosis and health index algorithm model, it can realize transformer insulation life assessment, overload assessment, health state comprehensive assessment and fault diagnosis functions, providing suggestions and schemes for transformer intelligent operation and asset management.
-
Multidimensional and Multiparameter Monitoring of Transformers
-
Advanced and Reliable Comprehensive Monitoring
-
Intelligent Comprehensive Diagnosis
Product Highlights
Multidimensional and Multiparameter Monitoring of Transformers

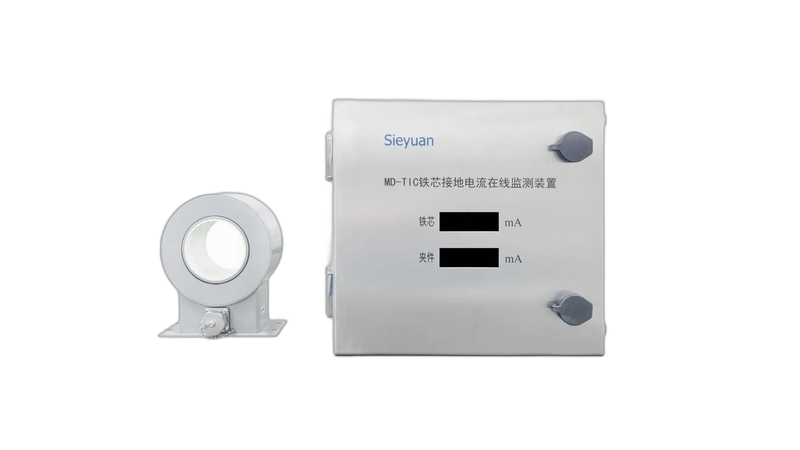

Sieyuan SEM-T transformer integrated online monitoring system includes online monitoring of dissolved gas in oil, temperature measurement of winding optical fiber, online monitoring of partial discharge, online monitoring of core grounding current, and online monitoring of bushing insulation.
Advanced and Reliable Comprehensive Monitoring
The system uses the advanced, reliable, integrated and intelligent sensors to perform comprehensive real-time monitoring of the transformer and make correct diagnosis and prediction of early faults.
Intelligent Comprehensive Diagnosis
Through 3D digital twin modeling, users can more intuitively understand the real-time status of the monitored equipment, and are provided with comprehensive, reliable, efficient and intelligent condition monitoring solutions.
Technical Specification
CPU
i7-8700; base clock 3.20 GHz or higher
Database
MySQL 5.x or higher
Telemetry Update Interval
< 5 s
Remote Indication Change Transmission Time
< 5 s
Fault-Related Remote Indication Change Transmission Time
< 3 s
Remote Control Command Transmission Time
< 2 s
Historical Data Retention Period
> 5 years
Control Operation Accuracy
100%
