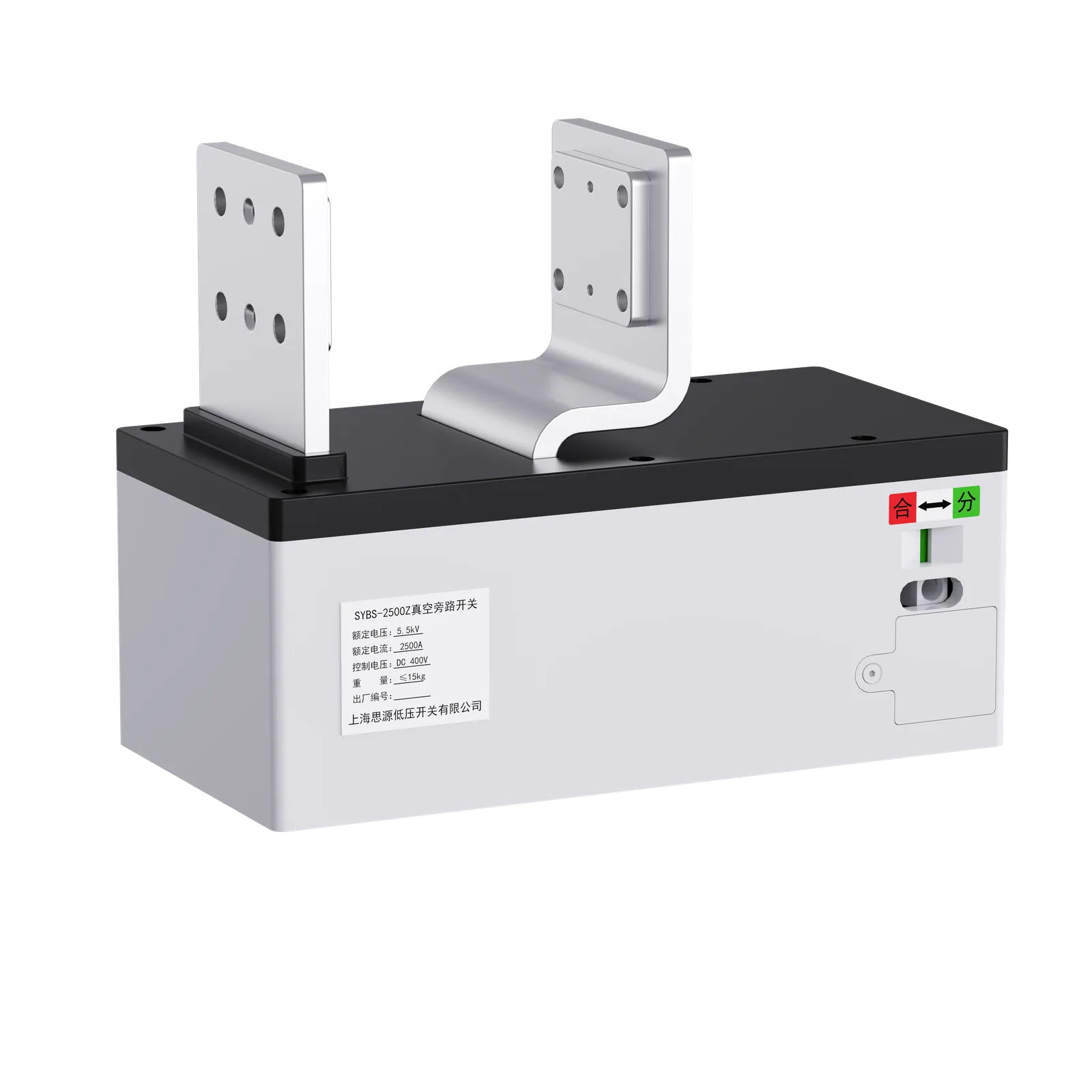

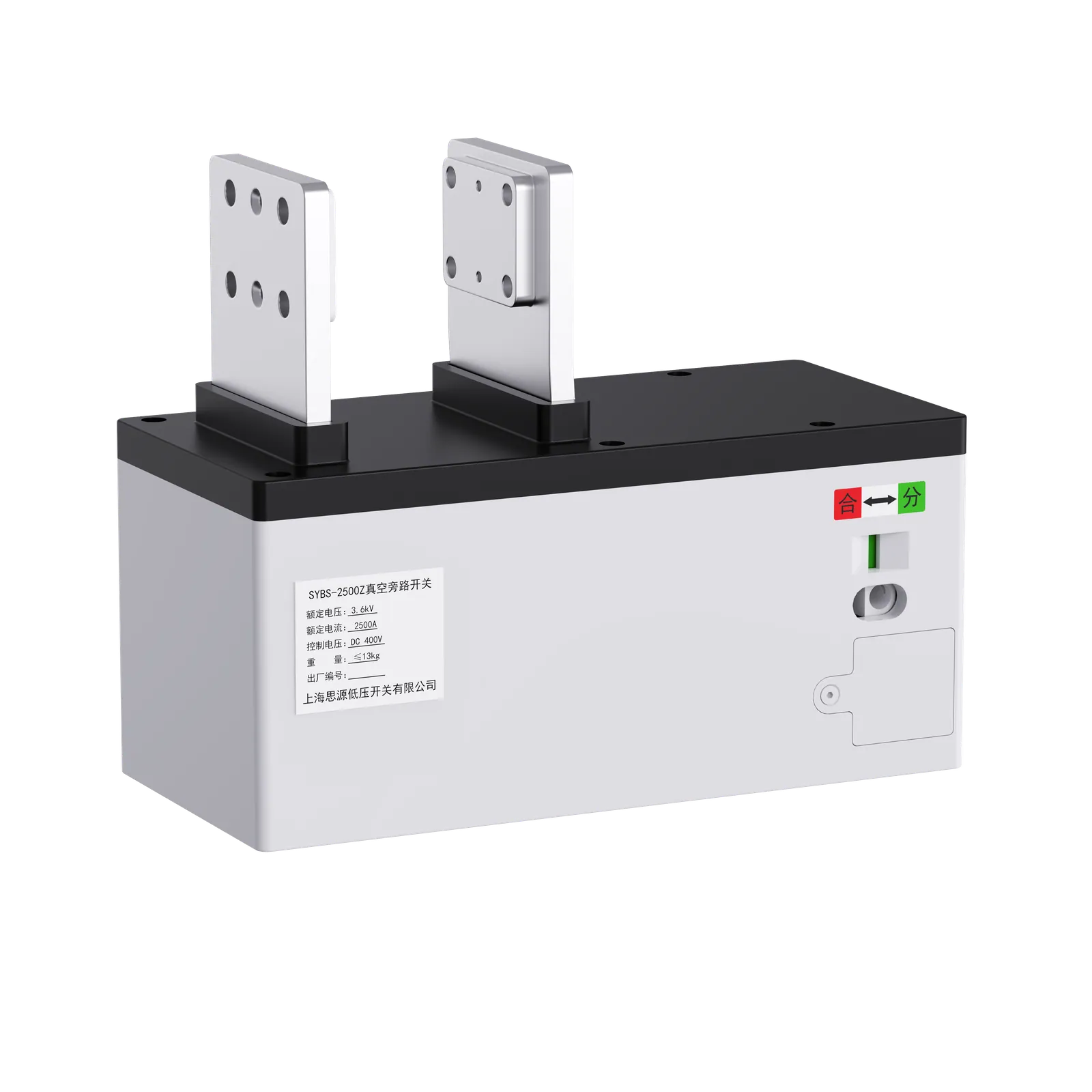

Vacuum Insulated Type Bypass Switch
SYBS series vacuum insulated type bypass switches are applied to sub-modules of SVG and high-voltage inverter power units and adopt redundant design. When the IGBT of any sub-module fails, the bypass switch can be quickly put into operation to bypass the faulty sub-module and ensure stable operation of the complete equipment.
-
Engineered for Long-Term Reliability
-
Long-Term Steady Bypass Support
-
Fast Response
Product Highlights
Engineered for Long-Term Reliability
Features a physical isolation point and self-latching mechanism requiring no continuous power supply; capable of making under load.
Long-Term Steady Bypass Support
Low conduction loss, minor temperature rise, supporting prolonged bypass operation.
Fast Response
Closing time ≤ 5 ms, zero contact bounce, meeting requirements for rapid closing.
Technical Specification
Rated Operating Voltage Ue
AC 3600V
Rated Operating Current Ie
700A, 1250A, 2500A
1min Power Frequency Withstand Voltage Ud
12kV
Mechanical Endurance
2000
Closing Time (Including Bounce)
≤5ms
Feedback Time of Closing State (Including Bounce)
≤7ms
Closing Bounce Time
0μs
