Sieyuan supplied 33 kV earthing transformers and neutral grounding resistors across multiple Saudi PIF utility-scale renewable power plants.
Supporting Saudi PIF Renewable Energy Projects with Sieyuan 33kV Neutral Grounding Solutions
For the Saudi PIF renewable energy projects, Sieyuan supplied 33kV earthing transformers and neutral grounding resistors across multiple utility-scale renewable power plants. Drawing on a field-proven neutral grounding portfolio, Sieyuan delivered reliable solutions for utility-scale renewable projects to support large renewable energy installations. The combined earthing transformer and neutral grounding resistor solution establishes reliable artificial neutral points and effectively limits single-phase grounding fault currents, enhancing overall system stability. Engineered for excellent thermal stability, dependable insulation performance, and high environmental adaptability, the equipment withstands Saudi Arabia's demanding high-temperature and desert conditions, ensuring safe and reliable operation of medium-voltage power systems.
Project Overview
Sieyuan supplied 33 kV earthing transformers and neutral grounding resistors across multiple Saudi PIF utility-scale renewable power plants.
Project Background
Expanding 33 kV collector systems across several PIF renewable plants.
Key Challenges
High fault-current withstand, desert adaptability and multi-site execution.
Sieyuan Solution
A field-proven portfolio backed by more than 40,000 sets delivered worldwide.
Technical Highlights
Verified 1500 A-class short-circuit withstand with IP55 outdoor protection.
Project Overview
Project Background
The Saudi PIF renewable energy projects span multiple large-scale power plants whose medium-voltage collector systems operate at 33kV. As renewable power plants have continued to expand and collector systems have grown more complex, the projects have demanded higher neutral grounding reliability, stronger single-phase grounding fault current limitation, and dependable long-term operation.
Key Challenges
Spanning multiple large renewable projects, the series placed high demands on equipment reliability, environmental adaptability, and engineering execution. The equipment had to meet the neutral grounding requirements of 33kV systems, withstand high fault-current impacts, and ensure safe, reliable long-term outdoor operation under Saudi Arabia's harsh conditions, including high temperatures, blowing sand, and desert conditions.
Sieyuan Solution
As a leading supplier of neutral grounding solutions, Sieyuan has delivered more than 40,000 sets of medium-voltage neutral grounding equipment worldwide, backed by extensive engineering experience. To meet the program's requirements for high fault-current withstand, environmental adaptability, and long-term reliability, Sieyuan supplied an integrated 33kV earthing transformer and neutral grounding resistor solution.
Through optimized structural design, strengthened performance, and improved environmental adaptability, the solution delivers reliable operation under high-temperature, desert conditions, effectively limits neutral grounding fault currents, and establishes a safe, dependable artificial neutral point for the renewable plants.
Technical Highlights
- Verified short-circuit withstand capability for high fault-current conditions — Both the earthing transformer and neutral grounding resistor have successfully passed rigorous neutral short-circuit tests, demonstrating excellent thermal stability and short-time withstand capability to meet 1500A-class neutral fault-current requirements.

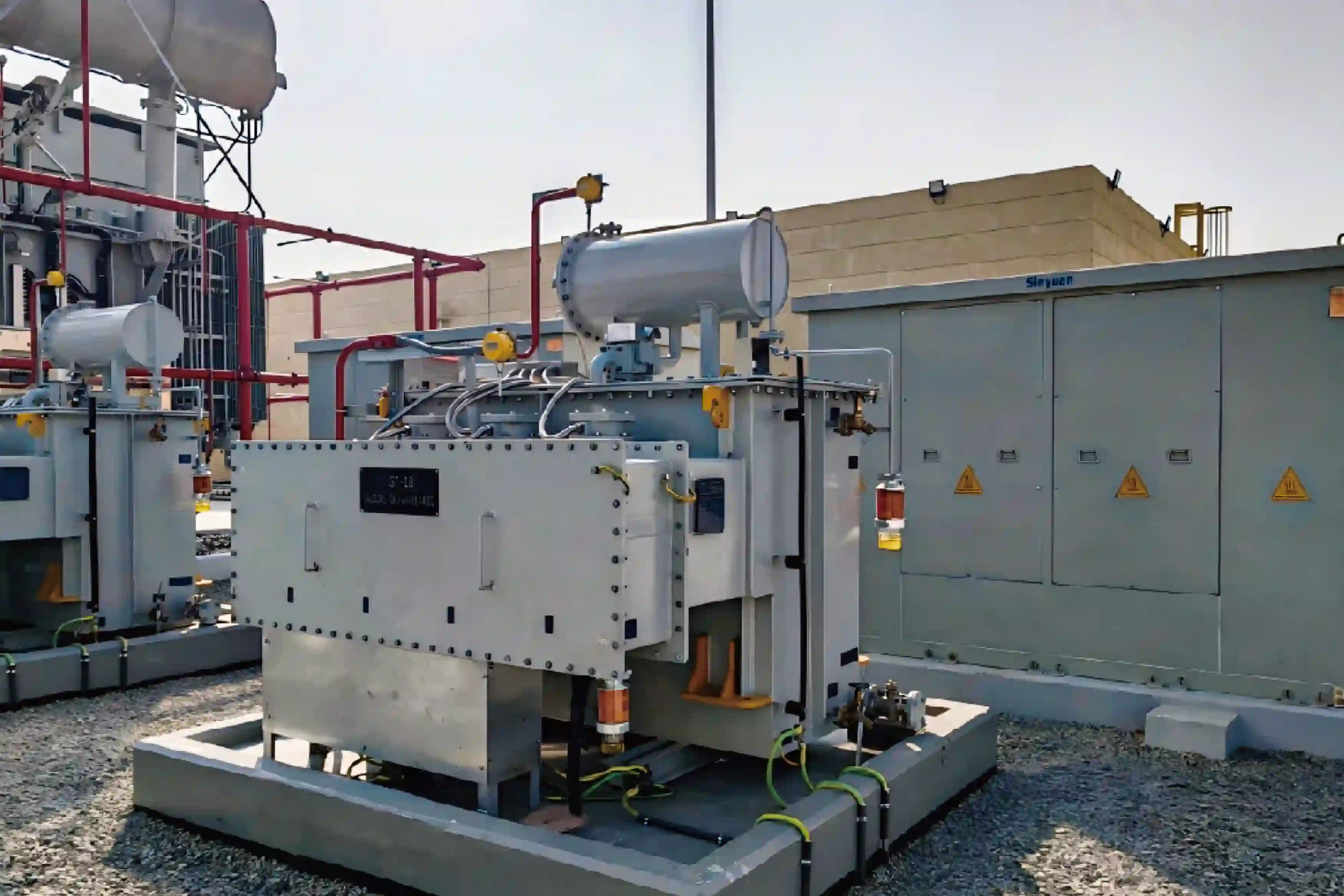

- IP55 protection and C5 corrosion resistance for harsh operating environments — Designed with IP55 protection and C5 corrosion resistance, the equipment provides enhanced protection against dust, moisture, and corrosion, ensuring reliable long-term operation under Saudi Arabia's harsh environmental conditions.
- High-reliability insulation design for safe long-term operation — The earthing transformer and neutral grounding resistor feature a high-reliability insulation structure validated through comprehensive insulation testing, ensuring safe and dependable operation throughout the equipment lifecycle.
- Plug-in cable termination design for simplified installation and maintenance — The plug-in cable termination design of the earthing transformer simplifies on-site installation, improves commissioning efficiency, and facilitates future inspection and maintenance.
