Mobile Substation
A mobile substation is a complete set of equipment that integrates high-voltage switchgear, transformers, medium-voltage switchgear, control and protection equipment, communication equipment, prefabricated cabins, etc. and is installed on a carrying device to achieve the transmission of electrical energy. It is mobile, has the functions of a complete substation, and is easy to install and construct.
-
Reduced Equipment Footprint
-
Operational Within Days
-
Lower Total Cost of Ownership
-
Adaptable to Any Deployment
Product Highlights
Reduced Equipment Footprint
Compact structure with a small volume, enabling easy transport and minimal floor area
Operational Within Days
Factory-assembled and pre-commissioned, achieving operational status within just 3 days on site.
Lower Total Cost of Ownership
No foundation or crane required, saving time, labor, and costs
Adaptable to Any Deployment
Transport as a whole unit for plug-and-play operation, allowing for adaptive and quick deployment or withdrawal

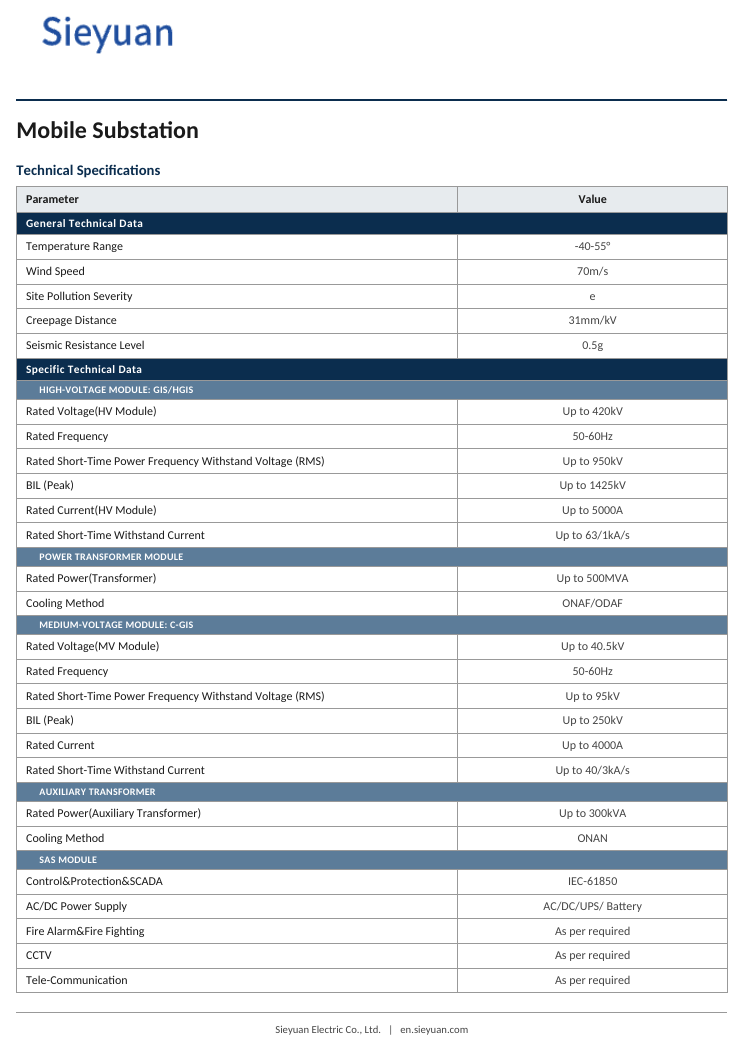

Technical Specification
Download
Wind Speed
70m/s
Seismic Resistance Level
0.5g
High-Voltage Module
GIS/HGIS
Rated Voltage(HV Module)
Up to 420kV
Rated Current(HV Module)
Up to 5000A
Rated Power(Transformer)
Up to 500MVA
Medium-Voltage Module
C-GIS
Rated Voltage(MV Module)
Up to 40.5kV
Rated Power(Auxiliary Transformer)
Up to 300kVA
Control&Protection&SCADA
IEC-61850
